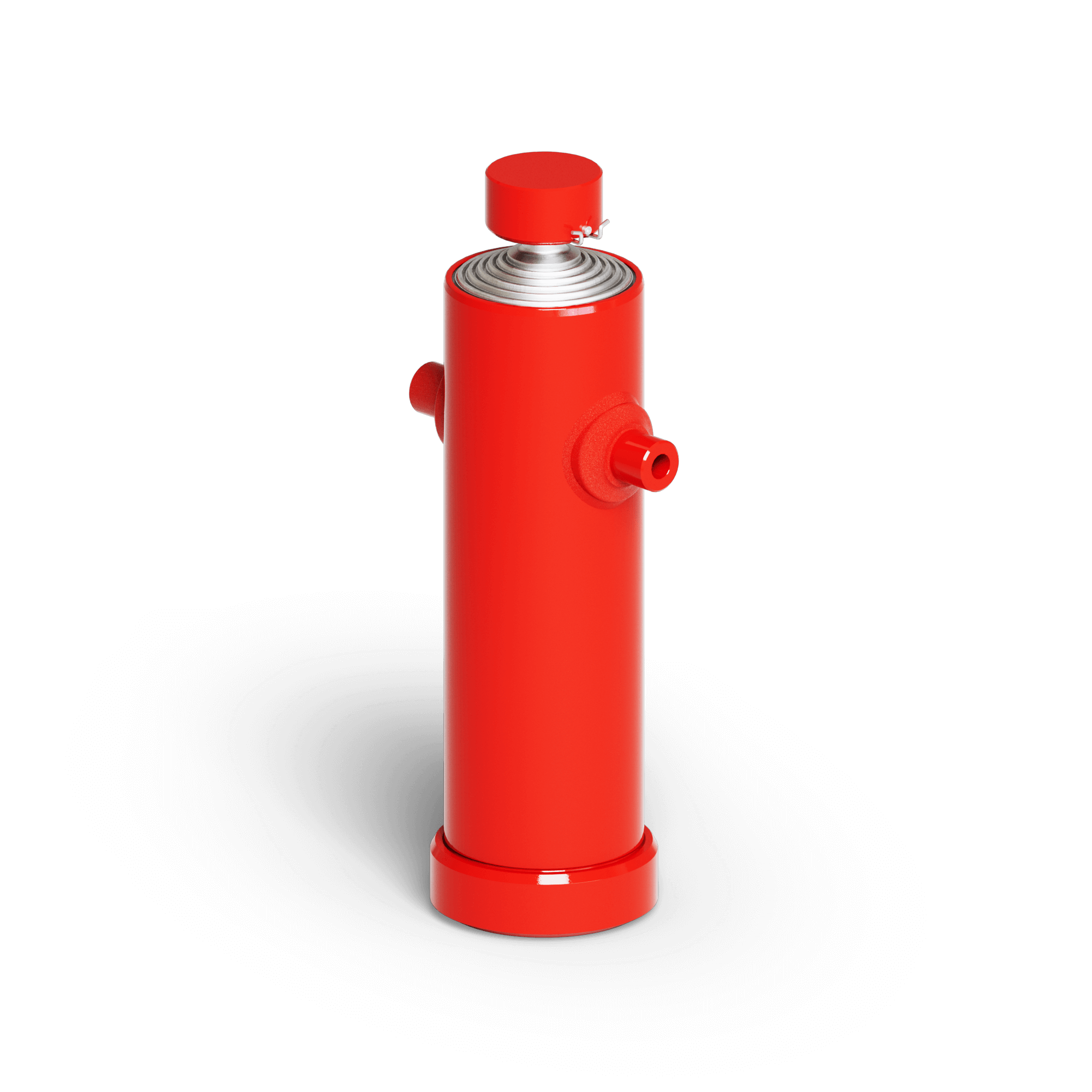

Telescopic cylinder with ball mounting

MS-SP Underbody cylinder - Binotto
Cylinders with ball mounting, for three-way tipping.
request information

Applications

agricoltura_1
agricoltura_1-1
agricoltura_1-2

Highlights

Cylinders with ball and socket are the perfect choice for applications requiring three-way tipping of the body.

Induction hardened top ball and socket

Hardened pin

Induction hardened top ball and socket

Hardened pin

TECHNICAL SHEETS

MS-SP cylinder

DescriptionStagesStrokeØ Outer tubeDØEØFHDownload
MS 3/585/130 SP35851302506093405
MS 3/645/130 SP36451302506093425
MS 3/705/130 SP37051302506093445
MS 3/765/130 SP37651302506093465
MS 3/825/130 SP38251302506093485
MS 3/885/130 SP38851302506093505
MS 3/1005/130 SP310051302506093545
MS 3/1185/130 SP311851302506093605
MS 4/780/130 SP47801302506093409
MS 4/860/130 SP48601302506093429
MS 4/940/130 SP49401302506093449
MS 4/1020/130 SP410201302506093469
MS 4/1100/130 SP411001302506093489
MS 4/1195/130 SP411951302506093509
MS 4/1355/130 SP413551302506093549
MS 4/1595/130 SP415951302506093609
MS 3/585/149 SP35851492506093417
MS 3/645/149 SP36451492506093437
MS 3/705/149 SP37051492506093457
MS 3/765/149 SP37651492506093477
MS 3/825/149 SP38251492506093497
MS 3/885/149 SP38851492506093517
MS 3/1005/149 SP310051492506093557
MS 3/1185/149 SP311851492506093617
MS 4/780/149 SP47801492506093418
MS 4/860/149 SP48601492506093438
MS 4/940/149 SP49401492506093458
MS 4/1020/149 SP410201492506093478
MS 4/1100/149 SP411001492506093498
MS 4/1180/149 SP411801492506093518
MS 4/1340/149 SP413401492506093558
MS 4/1580/149 SP415801492506093618
MS 5/975/149 SP59751492506093422
MS 5/1075/149 SP510751492506093442
MS 5/1175/149 SP511751492506093462
MS 5/1275/149 SP512751492506093482
MS 5/1375/149 SP513751492506093502
MS 5/1475/149 SP514751492506093522
MS 5/1675/149 SP516751492506093562
MS 5/1975/149 SP519751492506093622
MS 3/585/168 SP35851682506093420
MS 3/645/168 SP36451682506093440
MS 3/705/168 SP37051682506093460
MS 3/765/168 SP37651682506093480
MS 3/825/168 SP38251682506093500
MS 3/885/168 SP38851682506093520
MS 3/1005/168 SP310051682506093560
MS 3/1185/168 SP311851682506093620
MS 4/780/168 SP47801682506093422
MS 4/860/168 SP48601682506093442
MS 4/940/168 SP49401682506093462
MS 4/1020/168 SP410201682506093482
MS 4/1100/168 SP411001682506093502
MS 4/1180/168 SP411801682506093522
MS 4/1340/168 SP413401682506093562
MS 4/1580/168 SP415801682506093622
MS 5/1075/168 SP510751682506093415
MS 5/1175/168 SP511751682506093435
MS 5/1275/168 SP512751682506093455
MS 5/1375/168 SP513751682506093475
MS 5/1475/168 SP514751682506093495
MS 5/1575/168 SP515751682506093515
MS 5/1675/168 SP516751682506093555
MS 5/1975/168 SP519751682506093615
MS 6/1170/168 SP611701682506093420
MS 6/1290/168 SP612901682506093440
MS 6/1410/168 SP614101682506093460
MS 6/1530/168 SP615301682506093480
MS 6/1650/168 SP616501682506093500
MS 6/1770/168 SP617701682506093520
MS 6/2010/168 SP620101682506093560
MS 6/2370/168 SP623701682506093620
MS 5/975/188 SP59751882506093420
MS 5/1075/188 SP510751882506093440
MS 5/1175/188 SP511751882506093460
MS 5/1275/188 SP512751882506093480
MS 5/1375/188 SP513751882506093500
MS 5/1475/188 SP514751882506093520
MS 5/1675/188 SP516751882506093560
MS 5/1975/188 SP519751882506093620
MS 6/1170/188 SP611701882506093420
MS 6/1290/188 SP612901882506093440
MS 6/1410/188 SP614101882506093460
MS 6/1530/188 SP615301882506093480
MS 6/1650/188 SP616501882506093500
MS 6/1770/188 SP617701882506093520
MS 6/2010/188 SP620101882506093560
MS 6/2370/188 SP623701882506093620
MS 7/1365/188 SP713651882506093425
MS 7/1505/188 SP715051882506093445
MS 7/1645/188 SP716451882506093465
MS 7/1785/188 SP717851882506093485
MS 7/1925/188 SP719251882506093505
MS 7/2065/188 SP720651882506093525
MS 7/2345/188 SP723451882506093565
MS 7/2765/188 SP727651882506093625
MS 6/1170/213 SP611702132506093425
MS 6/1290/213 SP612902132506093445
MS 6/1410/213 SP614102132506093465
MS 6/1530/213 SP615302132506093485
MS 6/1650/213 SP616502132506093505
MS 6/1770/213 SP617702132506093525
MS 6/2010/213 SP620102132506093565
MS 6/2370/213 SP623702132506093625
MS 7/1365/213 SP713652132506093425
MS 7/1505/213 SP715052132506093445
MS 7/1645/213 SP716452132506093465
MS 7/1785/213 SP717852132506093484
MS 7/1925/213 SP719252132506093505
MS 7/2065/213 SP720652132506093525
MS 7/2345/213 SP723452132506093565
MS 7/2765/213 SP727652132506093625
MS 8/1560/213 SP815602132506093435
MS 8/1720/213 SP817202132506093455
MS 8/1920/213 SP819202132506093475
MS 8/2040/213 SP820402132506093495
MS 8/2200/213 SP822002132506093515
MS 8/2360/213 SP823602132506093535
MS 8/2680/213 SP826802132506093575
MS 8/3160/213 SP831602132506093635
MS 6/1170/238 SP6117023825068110435
MS 6/1290/238 SP6129023825068110455
MS 6/1410/238 SP6141023825068110475
MS 6/1530/238 SP6153023825068110495
MS 6/1650/238 SP6165023825068110515
MS 6/1770/238 SP6177023825068110535
MS 6/2010/238 SP6201023825068110575
MS 6/2370/238 SP6237023825068110635
MS 7/1365/238 SP7136523825068110435
MS 7/1505/238 SP7150523825068110455
MS 7/1645/238 SP7164523825068110475
MS 7/1785/238 SP7178523825068110495
MS 7/1925/238 SP7192523825068110515
MS 7/2065/238 SP7206523825068110535
MS 7/2345/238 SP7234523825068110575
MS 7/2765/238 SP7276523825068110635
MS 8/1560/238 SP8156023825068110440
MS 8/1720/238 SP8172023825068110460
MS 8/1880/238 SP8188023825068110480
MS 8/2040/238 SP8204023825068110500
MS 8/2200/238 SP8220023825068110520
MS 8/2360/238 SP8236023825068110540
MS 8/2680/238 SP8268023825068110580
MS 8/3160/238 SP8316023825068110640
MS 9/1755/238 SP917552382506093440
MS 9/1935/238 SP919352382506093460
MS 9/2160/238 SP921602382506093480
MS 9/2295/238 SP922952382506093500
MS 9/2475/238 SP924752382506093520
MS 9/2655/238 SP926552382506093540
MS 9/3015/238 SP930152382506093580
MS 9/3555/238 SP935552382506093640
MS 6/1170/269 SP6117026925068110440
MS 6/1290/269 SP6129026925068110460
MS 6/1410/269 SP6141026925068110480
MS 6/1530/269 SP6153026925068110500
MS 6/1650/269 SP6165026925068110520
MS 6/1770/269 SP6177026925068110540
MS 6/2010/269 SP6201026925068110580
MS 6/2370/269 SP6237026925068110640
MS 7/1365/269 SP7136526925068110445
MS 7/1505/269 SP7150526925068110465
MS 7/1645/269 SP7164526925068110485
MS 7/1785/269 SP7178526925068110505
MS 7/1925/269 SP7192526925068110525
MS 7/2065/269 SP7206526925068110545
MS 7/2345/269 SP7234526925068110585
MS 7/2765/269 SP7276526925068110645
MS 8/1560/269 SP8156026925068110445
MS 8/1720/269 SP8172026925068110465
MS 8/1880/269 SP8188026925068110485
MS 8/2040/269 SP8204026925068110505
MS 8/2200/269 SP8220026925068110525
MS 8/2360/269 SP8236026925068110545
MS 8/2680/269 SP8268026925068110585
MS 8/3160/269 SP8316026925068110645
MS 9/1755/269 SP9175526925068110450
MS 9/1935/269 SP9193526925068110470
MS 9/2115/269 SP9211526925068110490
MS 9/2295/269 SP9229526925068110510
MS 9/2475/269 SP9247526925068110530
MS 9/2655/269 SP9265526925068110550
MS 9/3015/269 SP9301526925068110590
MS 9/3555/269 SP9355526925068110650
MS 7/1365/300 SP7136530025080150455
MS 7/1505/300 SP7150530025080150475
MS 7/1645/300 SP7164530025080150495
MS 7/1785/300 SP7178530025080150515
MS 7/1925/300 SP7192530025080150535
MS 7/2065/300 SP7206530025080150555
MS 7/2345/300 SP7234530025080150595
MS 7/2765/300 SP7276530025080150655
MS 7/4235/300 SP7423530025080150910
MS 7/4515/300 SP7451530025080150960
MS 7/5075/300 SP75075300250801501060
MS 8/1560/300 SP8156030025068110455
MS 8/1720/300 SP8172030025068110475
MS 8/1880/300 SP8188030025068110495
MS 8/2040/300 SP8204030025068110515
MS 8/2200/300 SP8220030025068110535
MS 8/2360/300 SP8236030025068110555
MS 8/2680/300 SP8268030025068110595
MS 8/3160/300 SP8316030025068110655
MS 9/1755/300 SP9175530025068110455
MS 9/1935/300 SP9193530025068110475
MS 9/2115/300 SP9211530025068110495
MS 9/2295/300 SP9229530025068110515
MS 9/2475/300 SP9247530025068110535
MS 9/2655/300 SP9265530025068110555
MS 9/3015/300 SP9301530025068110595
MS 9/3555/300 SP9355530025068110655
Accessories: cradles
CodeDescriptionDownload
CRAMT5GB02Cradle for cylinder Ø168
CRABC6GG01Cradle for cylinder Ø188
CRABC7GG01Cradle for cylinder Ø213
CRABC8GG01Cradle for cylinder Ø238
CRABC9GG01Cradle for cylinder Ø269

DOWNLOAD

QUICK INTRUCTIONS

USER MANUAL
